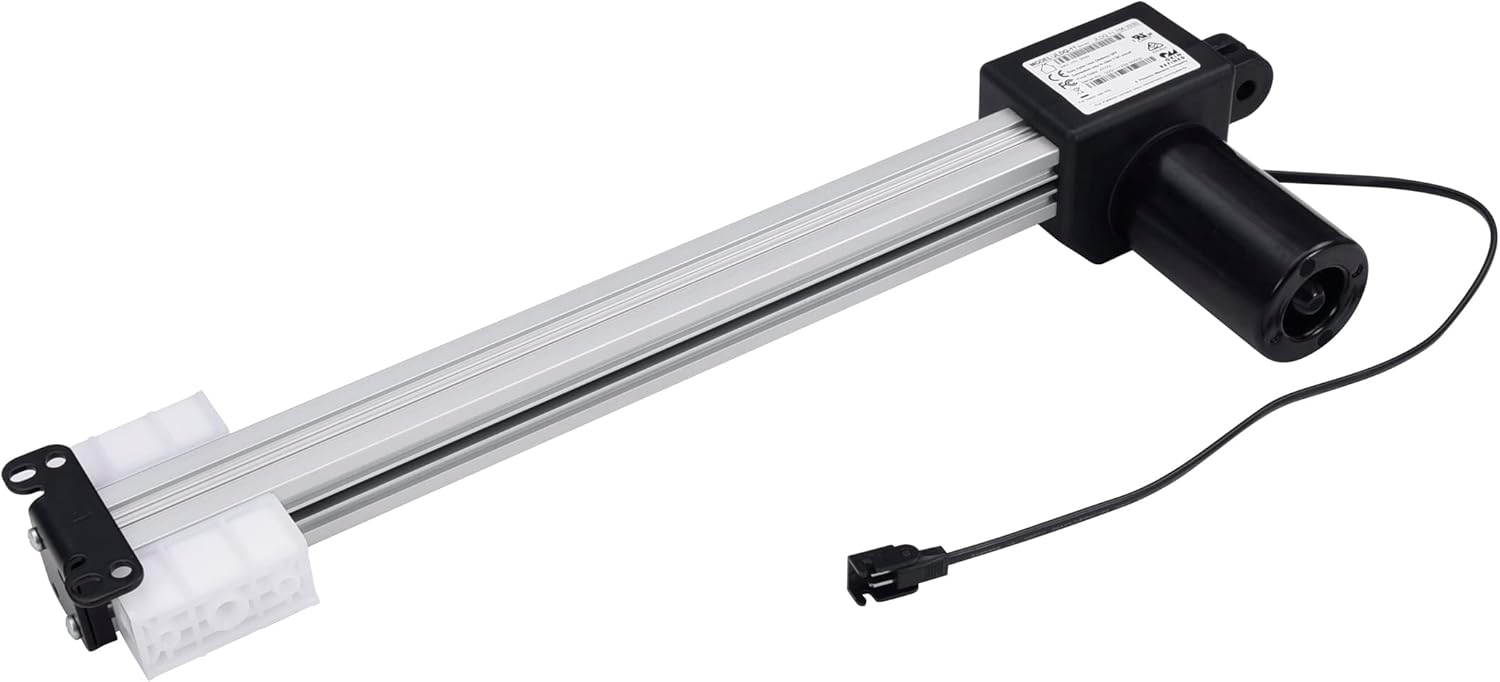

Okin Model JLDQ-11 & JLDQ.11.156.333D Power Recliner Motor, Lift Chair Actuator Replacement Part for JLDQ.11.156.333/A/K/P/Z
4.4 (38 items)
Limited Time Sale$53.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211761061 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211761061 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Okin Refined-R Model: JLDQ.11.156.333D Recliner Motor. This is original Okin JLDQ motor Technical data: Load: Push force: 750N, Pull force: 750N Stroke: 333 mm, move with slide block Operation frequency: On 1 min/Off 8min The motor is suggested to replace OKIN model JLDQ.11.156.333D, and also can replce JLDQ.11.156.333/A/K/P/Z series, a little difference but not affect use. Please check your motor brand and model first.
- APPLICATION: Different actuator/motors are not compatible with frame, the frame has strict demand for actuator/motors' minimum install dimension, stroke and plugs. The motor is suggested to replace OKIN model JLDQ.11.156.333D, and also can replce JLDQ.11.156.333/A/K/P/Z series, a little difference but not affect use. Please check your motor brand and model first.
- DESCRIPTION: The actuator motor set is made of 1 motor and 2 connectors, connector with 5-pin inside-the-motor round plug is for switch hand control, connector with 2-pin square plug and clip is for power supply.
- SPECIFICATION: Appearance: black (PA), silver white (aluminum); Stroke: 333mm ; Minimum Inst Size (shrink): 156 mm; Maximum Inst Size: 489 mm; Load: push force: 750 N pull force: 750 N.
- NOTE: Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor.
- PACKAGE: 1* Okin refined motor. Easy to install.
| Size | JLDQ.11.156.333D |
|---|---|
| Color | Black |
| Shape | Rectangular |
| Pattern | Solid |
| Tilting | Yes |
| Arm Style | Armless |
| Room Type | Living Room |
| Back Style | Solid Back |
| Brand Name | Okin |
| Item Depth | 19.3 inches |
| Model Name | JLDQ.11.156.333D |
| Style Name | Modern |
| Unit Count | 1.0 Count |
| Is Foldable | No |
| Item Weight | 5.5 Pounds |
| Finish Types | Painted |
| Manufacturer | OKIN Refined Electric Technology Co.,Ltd |
| Model Number | JLDQ.11.156.333D |
| Cushion Style | Boxed Edge |
| Fill Material | Foam |
| Material Type | Aluminum |
| Seat Material | Foam |
| Is Customizable | No |
| Item Dimensions | 22 x 6.7 x 3.5 inches |
| Furniture Finish | Aluminum |
| Required Assembly | No |
| Additional Features | Portable |
| Frame Material Type | Aluminum |
| Included Components | Okin Refined Motor |
| Indoor Outdoor Usage | Outdoor |
| Age Range Description | Adult |
| Surface Recommendation | Hard Floor |
| Furniture Base Movement | Rock |
| Reclining Position Count | 3 |
| Item Dimensions D x W x H | 7.09"D x 6.46"W x 10.75"H |
| Product Care Instructions | Wipe Clean |
| Recommended Uses For Product | Recliner Repair/Replacement |
| Maximum Weight Recommendation | 165.34 Pounds |
