AmScope ME1200TB-3M Digital Inverted Trinocular Metallurgical Microscope, 50X-1000X Magnification, PL10x and PL20x Eyepieces, Polarizing Condenser, Brightfield and Polarizing LED Illumination with Rheostat, Large Double-Layer Mechanical Stage, 90-240V, Includes 3MP Camera with Reduction Lens and Software

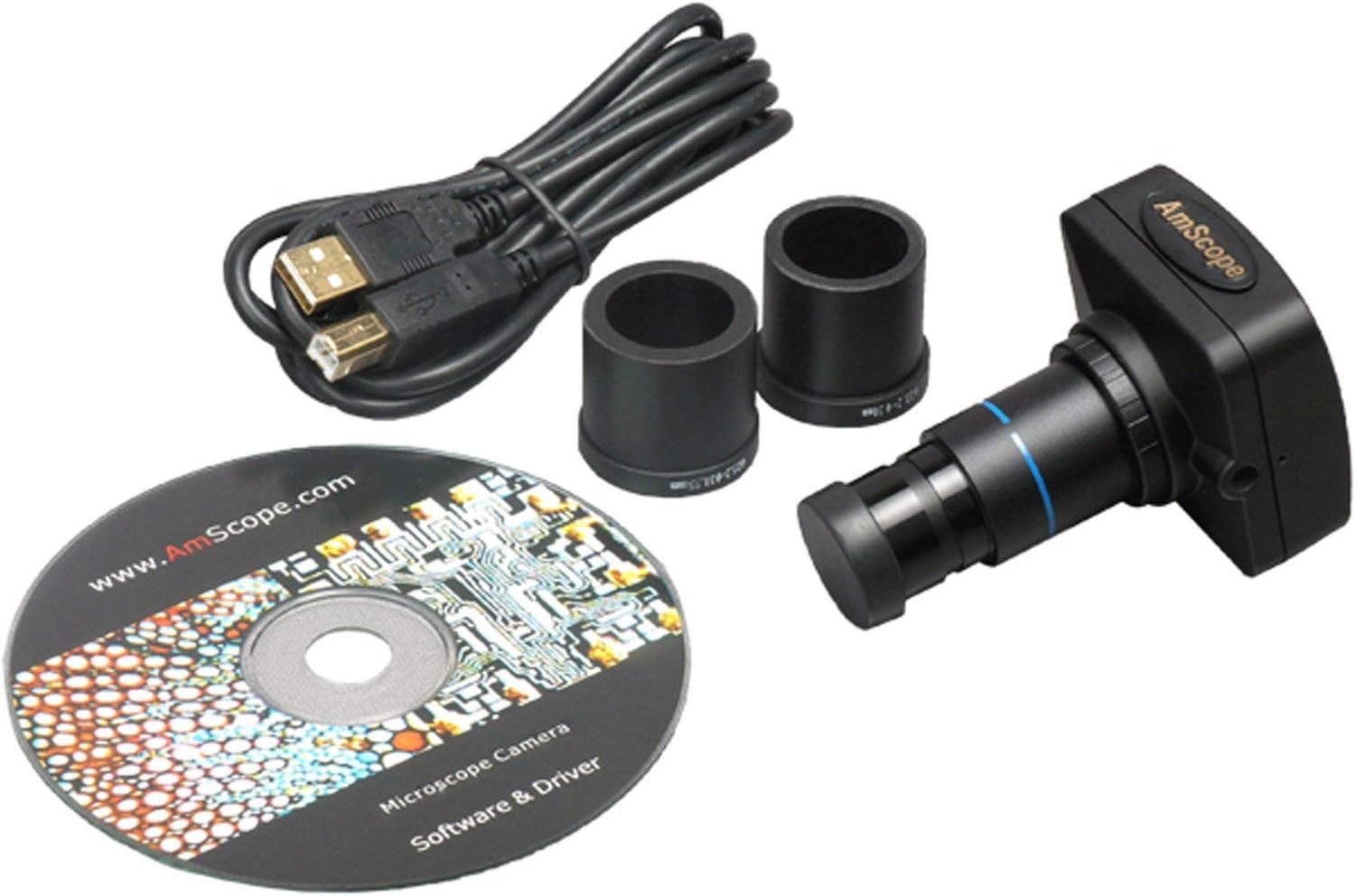

The AmScope ME1200TB-3M digital inverted metallurgical trinocular microscope has interchangeable pairs of 10x18mm and 20x10mm plan widefield eyepieces, a quadruple nosepiece with four DIN plan achromatic objectives, episcopic Brightfield and polarizing LED illumination, a polarizing condenser, and a double-layer mechanical stage with a stage stop to protect slides and objectives from damage. The 3MP camera has a CMOS color sensor, a reduction lens, image capture and editing software, and USB 2.0 output to capture or display still or video images on a computer or projector. The trinocular viewing head has a vertical camera mount, a Siedentopf binocular head to adjust interpupillary distance, and a fixed 45-degree vertical inclination to reduce eye and neck strain. The vertical trinocular port has a 100% light-splitting rate and can be used as a 23mm photo port. The Siedentopf head has a range of 55 to 75mm to accommodate individual eye differences, and bilateral dioptric adjustment to accommodate individual eye-strength differences. A Siedentopf binocular head enables the viewer to change the interpupillary distance without changing the tube length, eliminating the need to re-focus the image. The microscope has a quadruple nosepiece and includes 5x, 10x, 20x, and 50x DIN plan achromatic objectives that combine with the eyepieces to provide color correction of magnified images. Plan objectives provide improved focus over the entire range of the viewing field. A digital metallurgical microscope uses transmitted and reflected light to view opaque or metallurgical specimens, or larger specimens that cannot be viewed on a standard microscope stage, and is used where image capture, detailed records, or documentation is required.The 3MP digital camera has a CMOS color sensor for displaying still microscopy images and streaming live videos to a computer or projector. The camera has 40x magnification and a 0.5x reduction lens that ensures that the display has a similar field of view as the microscope eyepiece. The camera can be mounted in a C-Mount or any 23mm eye tube. The camera includes image capture and editing software that provides still image and live video capture and editing capability, including measurement functions. The software supports JPG, TIF, GIF, PSD, WMF, and BMP file formats and is compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. Camera drivers are compatible with Windows XP, Vista, 7, and 8; Mac OS X; and Linux. The software includes Windows APIs for native C/C++, C#, DirectShow, Twain, and LabVIEW that enable custom application development. The camera has a USB 2.0 data port (cable included).The microscope has reflected and transmitted episcopic Brightfield and polarizing illumination. Polarizing illumination reflects light off the specimen for enhanced visibility of opaque specimens. Brightfield (BF) illumination allows the specimen to absorb light, resulting in a dark image on a light background. The episcopic illumination system has independent filter holders for yellow, blue, and green filters (included). The iris diaphragm provides optimum contrast and resolution. The 3W LED light source provides bright, cool light for working with temperature-sensitive or live specimens, and a rheostat controls the amount of light emanating from the lamp. The double-layer mechanical stage has a 0.001mm vernier graduation and a removable stage plate to provide transmitted illumination. A vertical stage stop prevents the stage from coming into contact with the slide and objectives. The stage is 7-3/32 x 6-1/8 inches (180 x 155mm) and has a traveling range of 3 x 1-9/16 inches (75 x 40mm). The microscope has a focusing range of 1-5/16" (33mm) and a mechanical tube length of 6-5/16" (160mm). Coaxial coarse and fine focus has tension control to prevent the stage from drifting out of focus. The enamel-coated cast-steel body is durable and resistant to stains and corrosion. Microscope SpecificationsHeadTrinocularMagnification50x-1000xTrinocular port23mmEyepieces (23mm)PL10x18mm, PL20x10mmObjectives (20mm)5x, 10x, 20x, 50x DIN plan achromaticStageDouble-layer mechanicalFocusBilateral coarse and fineLight source3W LED with rheostatIllumination typeEpiscopicFiltersYellow, blue, greenCondenserPolarizingPower90 to 240V, CE certifiedCamera SpecificationsResolution3MP (2048 x 1536 effective pixels)Image typeStill image and video display and captureCamera typeBrightfieldCamera sensor1/2" Aptina MT9T001 CMOS (color)Magnification40xReduction lens0.5xMounting size23mm or C-MountFrame rate43fps at 680x510; 22fps at 1024x768; 8fps at 2048x1536Computer connectionUSB 2.0 (backward compatible on PCs only)File formatsJPG, TIF, GIF, PSD, WMF, BMPSoftware packageImage capture and editing for Windows XP, Vista, 7, and 8; Mac OS X; and LinuxCamera driver compatibilityWindows XP, Vista, 7, and 8; Mac OS X; and LinuxMicroscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.What's in the Box?AmScope ME1200TB-3M microscope with mechanical stagePL10x plan eyepieces, 23mm, one pairPL20x plan eyepieces, 23mm, one pair5x DIN plan achromatic objective, 20mm10x DIN plan achromatic objective, 20mm20x DIN plan achromatic objective, 20mm50x DIN plan achromatic objective, 20mmEpi-illumination systemPolarizer systemDiffusion filter(3) Color filters: yellow, blue, and green3MP digital camera (MU300)0.5x reduction lensUSB 2.0 cableSoftware CDPower cordDust coverInstructions

• Digital inverted metallurgical microscope uses reflected light to view metallic specimens, including electronics, or larger specimens not viewable on a standard microscope stage, and a 3MP camera with reduction lens and USB 2.0 output for capturing or displaying images on a computer or projector
• Trinocular head with interchangeable pairs of 10x18mm and 20x10mm plan widefield eyepieces, a Siedentopf binocular head with 55 to 75mm interpupillary adjustment, fixed 45-degree vertical inclination to reduce eye and neck strain
• Quadruple nosepiece with 5x, 10x, 20x, and 50x plan achromatic objectives that provide a longer working distance, color correction, and improved focus over the entire field of view
• Episcopic reflected and Brightfield illumination system has 3W LED light source with rheostat to control light intensity
• Double-layer mechanical stage with 0.001mm vernier, removable stage plate, and stage stop; graduated coarse and fine focus with tension control to prevent stage drift
