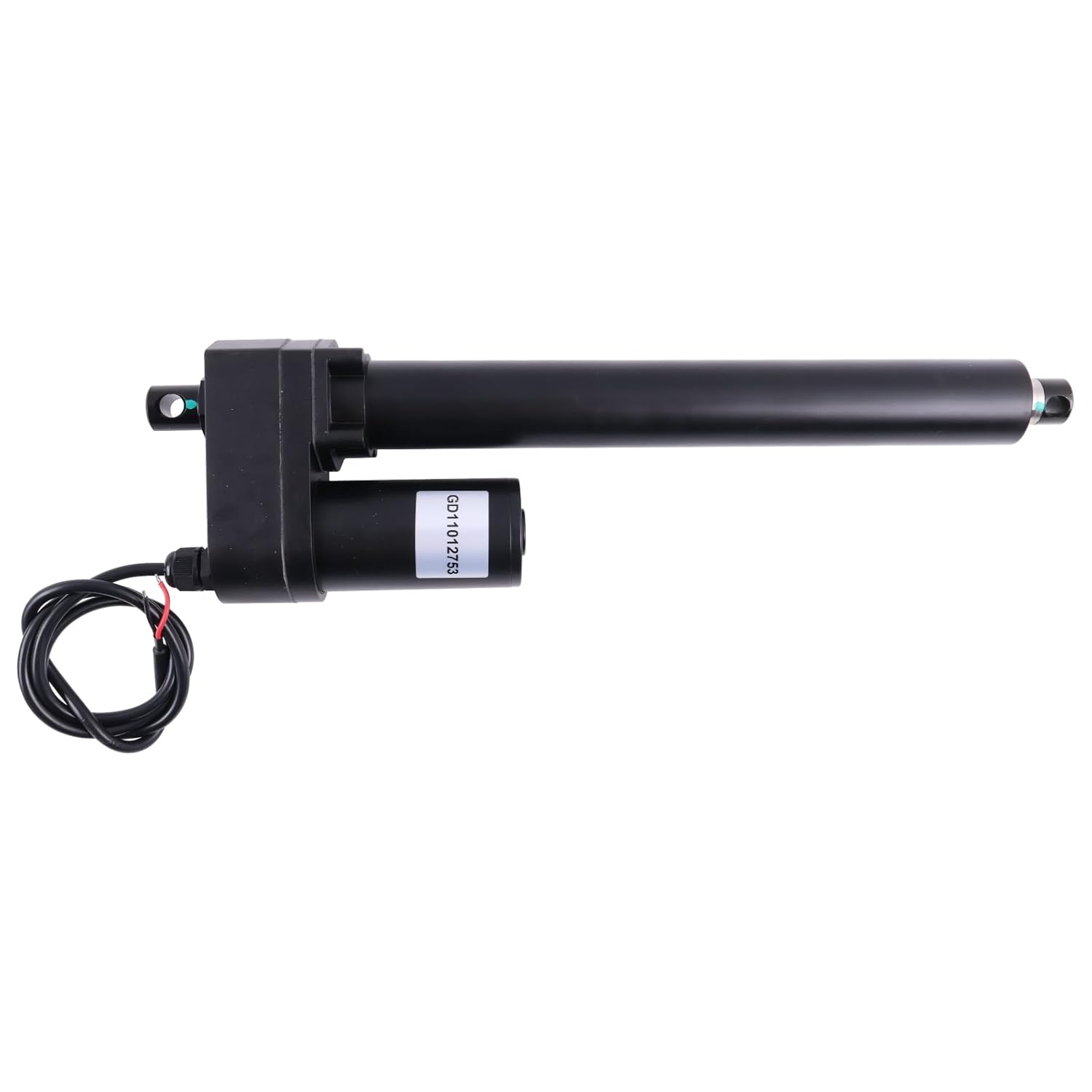

11.34" Stroke 12 Volt DC Linear Actuator LACT12-1000B 5-1680-12 Push/Pull Rating 1000 LBS with 1-1/8" Shaft
4.2 (101 items)
Limited Time Sale$183.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211205145 | Release Date | 2026/04/04 | List Price | $122.00 | Model Number | 211205145 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Stroke 288 mm (11.34") Voltage 12 DC Push/Pull Rating Dynamic 1000 lbs. max Extension Speed No Load 0.66 in/sec Max Load 0.56 in/sec Amps No Load 2.4 Full Load 13.2 Duty 25% Gear Ratio 20:1 Operational Temperature Range -13° F to +149° F Enclosure IP65 Pin Holes 1/2" Retracted Length 20.08" Shaft Dia. 1-1/8" Size 21.10" x 3.04" x 5.97"
- KSQOON 11.34" Stroke 12 Volt DC Linear Actuator LACT12-1000B 5-1680-12 Push/Pull Rating 1000 LBS with 1-1/8" Shaft
- Stroke:288 mm (11.34"); Voltage:12 DC; Push/Pull Rating: Dynamic 1000 lbs. max;
- Extension Speed: No Load 0.66 in/sec; Max Load 0.56 in/sec;
- Operational Temperature Range: -13° F to +149° F;
- Enclosure: IP65; Pin Holes: 1/2";
- Retracted Length:20.08"; Shaft Dia.: 1-1/8".
- Durable & Comfortable; Stable characteristic; Easy to install.
- Direct Fit, No Modification Needed.
- Before placing an order, please carefully check the physical picture on the link to ensure that the Linear Actuator is suitable.
| Item Weight | 13.35 pounds |
|---|---|
| Manufacturer | KSQOON |
| Package Dimensions | 22.06 x 7.49 x 5.12 inches |
