10pcs Four Spray Humidifier Module DIY Humidifier Control Board Atomizer Drive Board Four Way Ultrasonic Drive Board

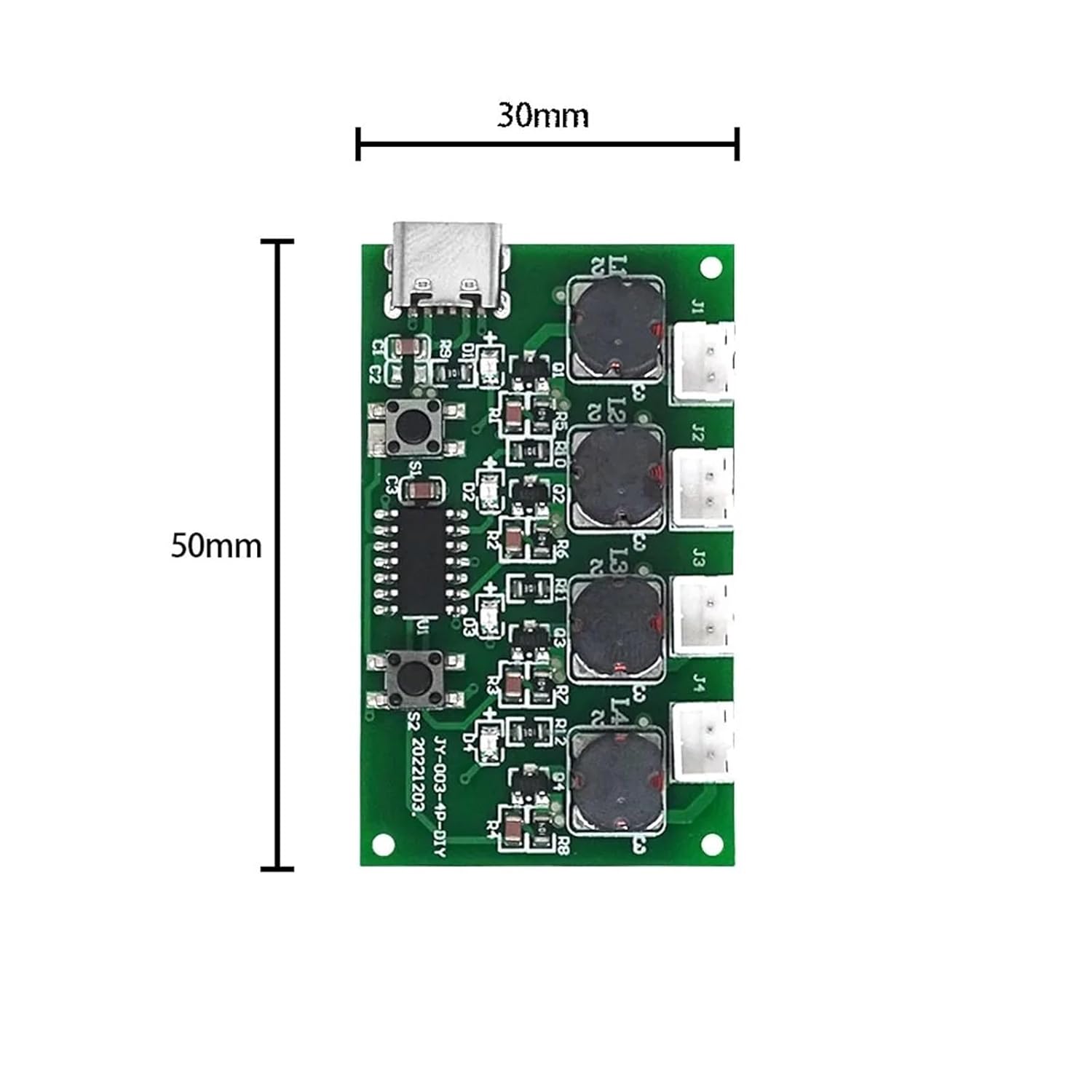

Sensor BlocksModel: four spray atomization driving plateRated voltage: DC 5vAtomization frequency: 108KHZ ± 2KHZRated current: 300MAMaterial: 1.2mmFR-4Power: 2.5-3WPCB size: 50 * 25 * 1.2mmAtmosphere lighting: white lightPress S1 switch for the first time in four consecutive spray modesFour nozzles are in continuous spray mode, four LED lights are always on, and spray will be automatically shut down for protection after 2 hoursContinuous four spray modePress S1 switch for the second shutdownDynamic spray mode (press S1 to start up first) Press S2 switch for the first timePress the first time, dynamic spray, spray for 3 seconds at No. 1 mouth, and the light should be on; Spray for 3 seconds from the second second at the entrance 2, and the light should be on accordingly;Spray for 3 seconds from the 3rd second at the 3rd entrance, and the light should be on accordingly; Spray for 3 seconds from the 4th second at Entrance 4, and the light is on accordingly; In the 5th second, spray at No.1 mouth for 3 seconds, and cycle in turn.In indirect spray mode, press S2 switch to turn on No. 1 spray for the second time, and the light will be on; Press the S2 switch for the third time1 # and 2 # spray, the light should be on; Press the S2 switch for the fourth time1 #, 2 #, 3 # spray, the light should be on; Press S2 switch on for the fifth time1 #, 2 #, 3 #, 4 # spray, light corresponding light on, press S2 switch for the sixth time to S2 start function, the above functions will automatically shut down within 2 hoursTurn off and press S1
